Description

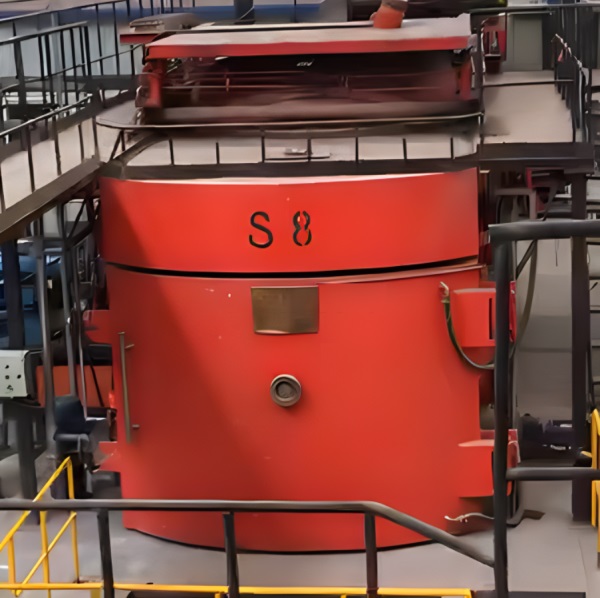

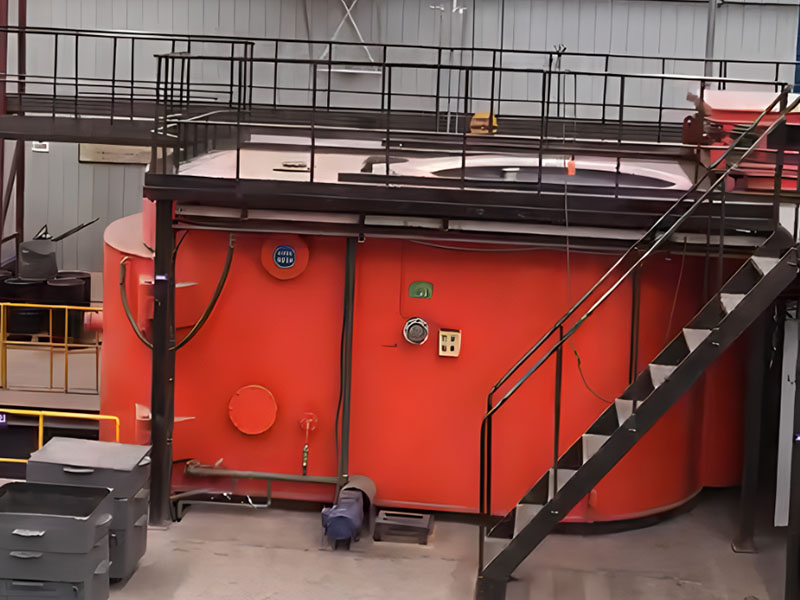

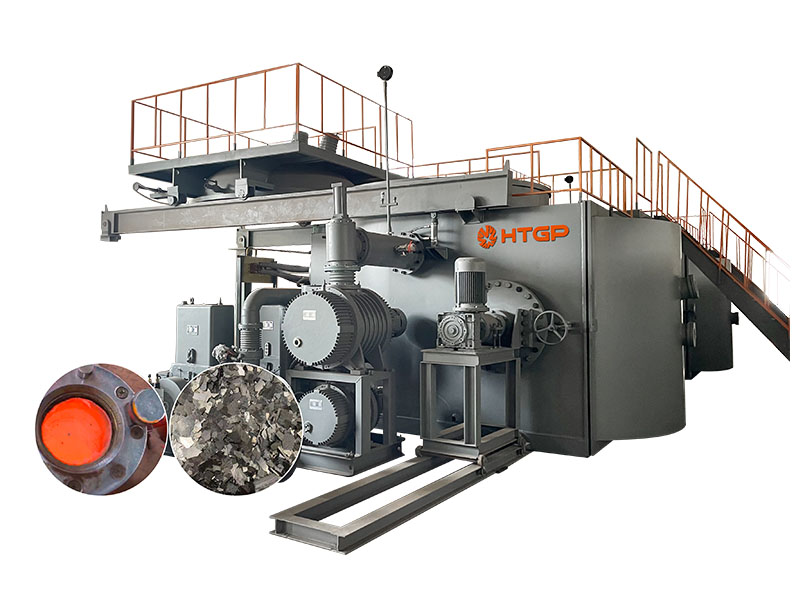

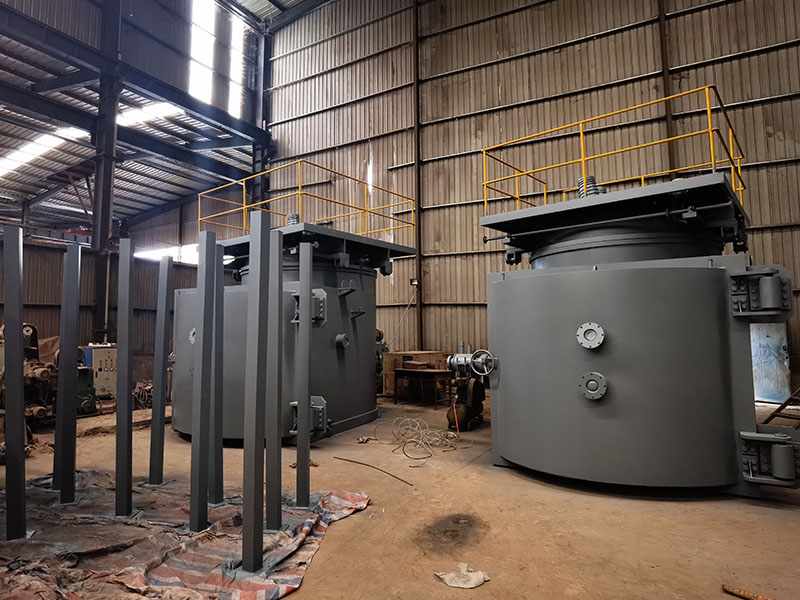

This equipment adopts single-roll rotating low-temperature cooling mode to produce thin ribbons, which is widely used in the production of NdFeB and hydrogen storage materials. Adopt advanced PID program regulator, automatically control quantitative pouring of metal melt, and accurately control the rotating speed of roller through frequency converter. The product has uniform thickness and good performance. The precipitation of α-Fe and amorphous is avoided in the production process of NdFeB strip, which provides guarantee for the production of high-quality NdFeB strip.
Features
- The standard melting capacity per furnace is 500kg/furnace
- Up to 600kg/furnace
- The melting temperature is usually 1450 ℃
- Maximum 1550 ℃
- The melting time is about 80 minutes from electrification to the end of melting
- (When 500kg Nb-Fe alloy is melted)
- The total cooling time of each furnace is about 12 hours
- Limit vacuum (melting chamber) below 0.5 Pa (measured after degassing in empty furnace)
- Working vacuum (melting chamber) 1Pa ~ 80Kpa (limited to inert gas)
- Pressure rise rate (melting chamber) below 3.010-3Pam3/sec (in empty furnace state)
